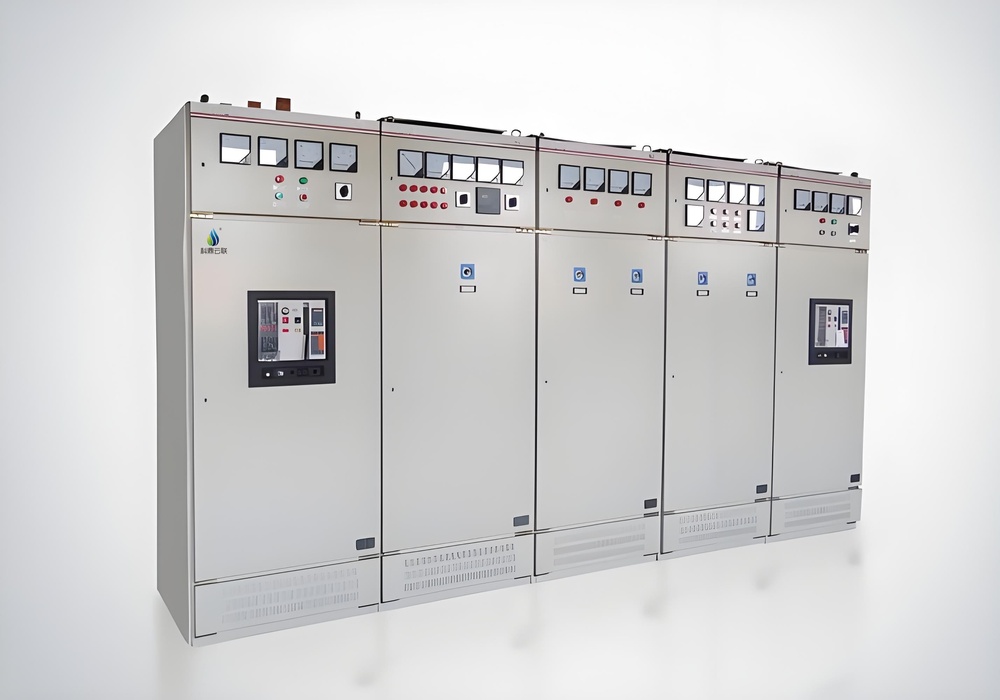

Low-Voltage Distribution and Power Control Complete Set System
The low-voltage distribution and power control complete set system provides a solution with high safety, functionality and flexibility. It realizes the digitalization, industrialization and conventional functions of the entire system, ensuring reliable and rapid application of the complete set.
Meanwhile, it is an easily expandable system. Standardized components enable the complete set solution to be completed quickly and cost-effectively, which can easily meet the intelligent and conventional application requirements of low-voltage power distribution and control in various industries. This solution can be widely applied in multiple fields.
Main Advantages
Digital Smart Distribution and Three Types of Cabinets
It can intelligently interconnect with the ABB Ability cloud platform, eEMS studio on-site energy efficiency platform and third-party platforms, realizing digital operation and maintenance management and providing support for carbon emission analysis as well as energy conservation and efficiency improvement.
Focus on More Industry-Specific Solutions
Including medical IT power supply, precision power distribution rack PDU for data centers, etc.
Typical, Rich and Practical Solutions
It provides a series of high-performance solutions for typical conventional applications such as power distribution, lighting, power and control.
Consistent Inheritance and Easy Use
It maintains the consistent safe and reliable main structure. After upgrading, the unique bevel design of the appearance is aesthetically pleasing and recognizable, making it more suitable for complete set assembly. It enables convenient on-site installation and a simpler and more efficient post-operation and maintenance experience for customers.
Main Features
l Product Standards: GB 7251.1, GB 7251.12, IEC 61439-1, IEC 61439-2
l Maximum Rated Insulation Voltage: 1000 V AC
l Rated Operating Voltage: 400 V / 690 V AC
l Rated Current:
l Wall-mounted cabinet: 250 / 400 A
l Floor-standing cabinet: 630 A
l Rated Short-Time Withstand Current:
l Wall-mounted cabinet: 10 kA / 1 s
Floor-standing cabinet: 20 kA / 1 s
