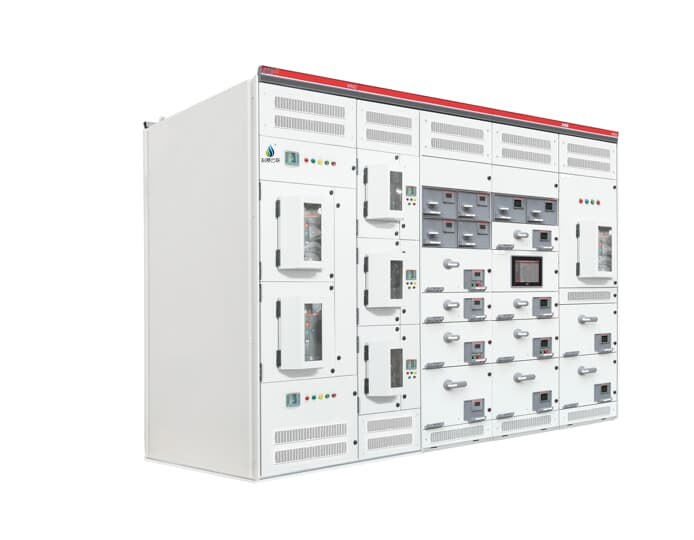

Product Introduction
The design scheme of the rear-output low-voltage switchgear can significantly reduce the arrangement width of the switchgear. The cable compartment is located at the back of the switchgear, and this design allows users to install two air circuit breakers (less than 3200 A) on one cabinet at the same time without causing derating
The operation of the 3.0 rear-output low-voltage switchgear is carried out on the front side, which is completely isolated from the power cables and terminals at the rear. This effectively protects the personal safety of operating and maintenance personnel.
Main Advantages
Excellent safety provides greater protection for operators and factories
Reliable, flexible and scalable
Easy to maintain, with specially arranged cables and terminals
Capable of integrating two air circuit breakers into one switchgear, greatly reducing the floor space
Reduces project costs
Main Features
The current of circuit breakers and main busbars can truly reach 6300 A
Arc resistance reaches 100 kA
Internal separation form meets form 4 type 7
