I. Core Product Overview

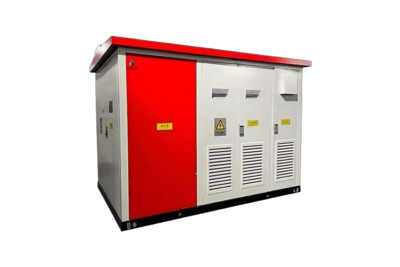

The box-type substation for power distribution is specially designed for three-phase AC power systems. It is compatible with a voltage class of 12kV and a rated frequency of 50Hz. Its core function is to stably convert 10kV high-voltage electricity into 0.4kV low-voltage electricity to meet end-user power demands. Adopting a highly integrated design, the product integrates three core pieces of equipment - high-voltage switchgear, transformers, and low-voltage switchgear - into one unit. The complete assembly and commissioning of the product are finished in the manufacturing plant, eliminating the need for on-site secondary assembly and greatly simplifying the deployment process.
In terms of application scenarios, this substation has wide adaptability. It can be used in residential quarters, commercial buildings and hotels, large construction sites, high-rise buildings, industrial and mining enterprises, and temporary construction sites. It features a flexible power supply mode, suitable for both ring network power supply and radial terminal power supply needs, providing stable and efficient power distribution solutions for different scenarios.
II. Core Product Features
1. Factory Prefabrication: Plug-and-Play for Convenient Deployment
All equipment undergoes one-time assembly and commissioning in the factory and is ready for operation when leaving the factory. Only external cables need to be connected on-site for it to be put into use, truly achieving "plug-and-play". This significantly reduces on-site construction procedures and time costs.
2. Flexible Combination Methods: Customized Adaptation for Full-Scenario Coverage
A variety of combination schemes are available, including various structural forms such as zigzag, mesh, Huashi (a Chinese-style structure), American-style, European-style, sinking-type, and container-type. It can be customized according to different installation environments, space conditions, and functional requirements, fully meeting the power distribution needs of various scenarios such as residential quarters, industrial sites, and temporary construction.
3. Low Investment and Quick Results: Cost Reduction, Efficiency Improvement, and Outstanding Cost-Effectiveness
Compared with conventional 35kV substations of the same scale, the comprehensive investment is reduced by more than 40%, significantly lowering project costs; the floor area is reduced by more than 60%, saving land resources, and it is particularly suitable for scenarios with limited space. The entire substation can be installed and put into operation in as fast as 5 to 8 days, and the workload of on-site installation and commissioning is reduced by more than 70%, which greatly shortens the project cycle, facilitating rapid power supply and early realization of benefits.
4. Attractive Appearance: Environmental Integration with Aesthetic Function
The color and shape of the outer shell can be customized according to the application scenario, enabling it to blend harmoniously with the surrounding buildings and natural environment. It is particularly suitable for urban construction projects. While ensuring the power distribution function, it can decorate and beautify the surrounding environment, enhancing the overall visual effect of the scenario.
